BIHUI Levelling Compound Mixing Station (Art.No: MS1900)

The BIHUI Levelling Compound Mixing Station is designed for efficient mixing of self-levelling cement, compounds, and epoxies with good fluidity. Here are the detailed features and specifications:

Features

• Mixing Capacity: Up to 100kg, allowing for hands-free operation.

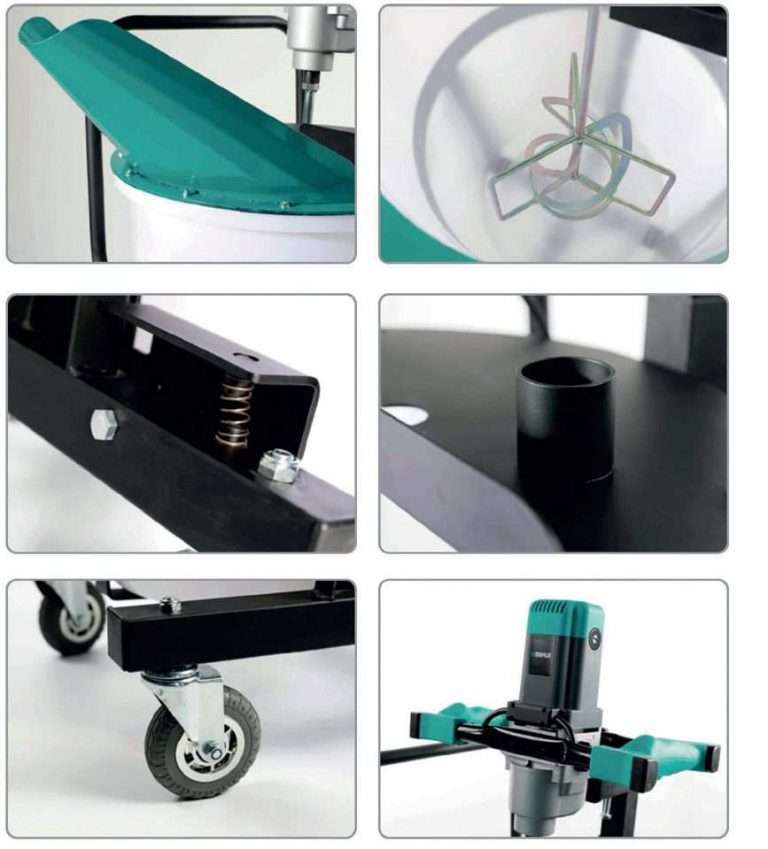

• Ergonomic Design:
  • Ergonomic handle and damping structure for comfortable handling.
  • Angled design for easier pouring.
• Removable Mixing Machine:
  • Includes a 1900W mixing machine with a large paddle for thorough mixing.
• Mobility:
  • Brake transporting castors and lightweight frame for easy maneuverability.
• Pouring Features:
  • Arc-shaped pouring spout and dust cover plate for clean and controlled pouring.

Specifications

• Dimensions: 745 x 560 x 997mm
• Net Weight: 33.5 Kg
• Power: 1900W
• Voltage/Frequency: 230V/50-60Hz
• No Load Speed:
  • 1st Speed: 150-300 rpm/min
  • 2nd Speed: 300-650 rpm/min
• Mixing Paddle: 300 x 600mm
• Capacity: 100L
• Noise Measurements:
  • LpA (Sound Pressure Level): 85 dB(A)
  • LwA (Sound Power Level): 96 dB(A)
• Vibration Emission Value:
  • Work Mode: ah = 1.695 m/s²
  • Uncertainty: K = 1.5 m/s²

Benefits

• Efficiency: Capable of mixing large quantities (up to 100kg) with minimal manual effort.
• Versatility: Suitable for various types of levelling compounds and epoxies with good fluidity.
• Safety: Features such as damping structure, brake castors, and ergonomic design enhance safety and ease of use.
• Precision: Large mixing paddle ensures thorough blending of materials for consistent results.

Usage Recommendations

1. Setup:

   • Ensure the mixing station is placed on a stable, level surface.
   • Verify all components are securely assembled and connected.

2. Operation:

   • Add the appropriate amount of material (levelling compound, epoxy, etc.) into the mixing container.
   • Start the mixing machine and adjust the speed as needed for thorough blending.
   • Utilize the arc-shaped pouring spout for controlled dispensing of the mixed material.

3. Maintenance:

   • Clean the mixing paddle and container after each use to prevent buildup and maintain performance.
   • Regularly inspect the machine for any signs of wear or damage, and address issues promptly.

The BIHUI Levelling Compound Mixing Station (Art.No: MS1900) is a robust and efficient tool designed to streamline the mixing process for various construction materials, ensuring consistent quality and ease of operation.
